Understand what consumes the most

• Powertop


  A general tool that works well is powertop which will give you per-process power consumption and information about CPU states, devices and tunable settings to decrease power consumption. It is good practice to calibrate the tool with powertop --calibrate (only on laptops) before collecting data, this will setup the tool to show correct estimations about power consumption.

  From the overview tab you can easily see which processes are consuming more power so that you can look into them individually. For example, If you find that systemd is logging too much, try to increase the time between logs, and so on.

• Iotop


  Another useful tool is iotop which will give you information about disk usage. Even though this does not directly list power consumption, there is a correlation between disk usage and power consumption so it is beneficial to look into this.

  You may start playing around with filesystems and mount options, later we'll see an option in BTRFS that improves performance.

• Plot power usage


  To evaluate a change in your system, you can log and graph different statistics and compare changes. The following script records Watts consumption each second:

  #!/bin/bash

  OUTFILE="power_log.csv"
  GNUPLOT_SCRIPT="plot_power.gp"
  INTERVAL=1  # seconds

  echo "timestamp,power_watts" > "$OUTFILE"

  prev_energy=$(< /sys/class/powercap/intel-rapl:0/energy_uj)
  prev_time=$(date +%s)

  while true; do
      sleep "$INTERVAL"

      curr_energy=$(< /sys/class/powercap/intel-rapl:0/energy_uj)
      curr_time=$(date +%s)

      delta_energy=$((curr_energy - prev_energy))
      delta_time=$((curr_time - prev_time))

      # Handle energy wraparound (32-bit counter)
      if [[ $delta_energy -lt 0 ]]; then
          delta_energy=$(( (2**32 + delta_energy) ))
      fi

      # Convert to watts
      power=$(awk "BEGIN { printf \"%.2f\", ($delta_energy / 1000000) / $delta_time }")
      timestamp=$(date +"%H:%M:%S")
      echo "$timestamp,$power" >> "$OUTFILE"

      prev_energy=$curr_energy
      prev_time=$curr_time
  done


  You can then graph it with gnuplot:

  set datafile separator ","
  set xdata time
  set timefmt "%H:%M:%S"
  set format x "%H:%M:%S"
  set xlabel "Time"
  set ylabel "Power (Watts)"
  set title "Power Consumption Over Time"
  set grid
  set term pngcairo size 800,400
  set output "power_plot.png"

  plot "power_log.csv" using 1:2 with lines title "Power (W)"

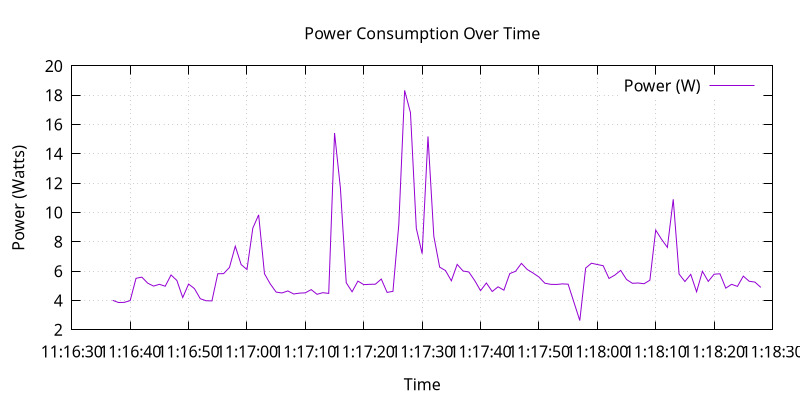

  Figure 1: Gnuplot output

Save yourself time: TLP

sudo tlp start

tlp-stat -s

Kernel Settings

Power management and ACPI options --->
-*- Device power management core functionality
[*] ACPI (Advanced Configuration and Power Interface) Support --->
  <*> AC Adapter
  <*> Battery
  -*- Button
  -*- Video
  <*> Fan
  <*> Processor
  <*> Thermal Zone

[*] CPU Frequency scaling --->
      Default CPUFreq governor (ondemand)  --->
  -*- 'performance' governor
  <*> 'powersave' governor
  <*> 'userspace' governor for userspace frequency scaling
  -*- 'ondemand' cpufreq policy governor
  <*> 'conservative' cpufreq governor
  <*> ACPI Processor P-States driver

Device Drivers --->
-*- Thermal drivers --->
  (0)   Emergency poweroff delay in milli-seconds
  [*]   Expose thermal sensors as hwmon device
  -*-   Enable writable trip points
        Default Thermal governor (step_wise)  --->
  [*]   Fair-share thermal governor
  -*-   Step_wise thermal governor
  -*-   Bang Bang thermal governor
  -*-   User_space thermal governor
  [ ]   Thermal emulation mode support
  [*]   Power allocator thermal governor
  Intel Thermal drivers --->
      <M>   Intel PowerClamp idle injection driver
      <M>   X86 package temperature thermal driver
      < >   Intel SoCs DTS thermal driver
      <M>   Intel PCH Thermal Reporting Driver
      ACPI INT340X thermal drivers  --->
          <M> ACPI INT340X thermal drivers

Device Drivers --->
[*] Generic powercap sysfs driver --->
  <M>   Intel RAPL Support

• Frequency Scaling


  You can choose a frequency scaling governor to manage throttling. This will dynamically change the clock's frequency and voltage configuration via P-states. Assuming you are using TLP, to list the available governors you can run:

  sudo tlp-stat -p | grep governor


  By default, Fedora 41 has "performance" and "powersave", so I choose powersave in tlp's settings (which is the default setting).

• Maximum charge level


  To increase battery life, It is recommended to reduce the maximum charge level below 100% and prevent the charging process to happen for every short discharge from the maximum. By default, TLP does not set this. To enable it, set the variables START_CHARGE_THRESH_BATx and START_CHARGE_THRESH_BATx to something like 75 and 80, where x represent the number of the battery in your laptop. Sadly, on some laptops (like my HP one) this is not supported and the command tlp-stat -b would output /sys/class/power_supply/BAT1/charge_control_start_threshold (not available).

• Omit Scheduling-Clock ticks for idle CPUs


  If you are doing mostly lightweight work with long idle periods, you can limit the scheduling-clock interrupt to prevent waking up some cores when It is not needed. The linux kernel documentation says that if scheduling is set to periodic, the system would drain 2-3 times faster compared to a kernel with this disabled, so It is quite a big deal. You may need it if you are running aggressive real-time response constraints, but this is not our case.

  Enable the following in your kernel configuration:

  CONFIG_NO_HZ_IDLE=y
  CONFIG_HZ_100=y


• Disable Atime in BTRFS


  BTRFS is a popular filesystem. A part of Its design is the CoW (Copy on Write) where a certain file would get copied in another location when a modification is made, this is necessary for the snapshotting functionality of the filesystem. However, this causes the problem where a file would get copied even if you just read it, just by updating the last access timestamp. This LWN article from Jonathan Corbet explains this well:

  If somebody takes a snapshot of a filesystem, then performs a recursive grep on that filesystem, the last-access time of every file touched may be updated. That, in turn, can cause copy-on-write operations on each file's inode structure, with the result that many or all of the inodes in the filesystem may be duplicated. That can increase the space consumption of the filesystem considerably; Alexander posted an example where a recursive grep caused 2.2GB of free space to disappear. That is a surprising result for what is meant to be a read-only operation.

  To disable the Atime feature, you need to put the noatime option on the BTRFS entries in /etc/fstab.

• Kernel Flags


  You can add the following kernel flags when booting your system:

  • pcie_aspm=force: force PCIe Active State Power Management to put PCIe devices into low-power states. Some devices may stop working if they are not implemented correctly, so do your own tests.
  • For intel GPUs:
    • i915.enable_dc=2: enable the display engine to enter low-power states.
    • i915.enable_fbc=1: enables Frame Buffer Compression (FBC), reducing memory bandwidth when the screen content is static
    • i915.enable_psr=1: enables Panel Self Refresh (PSR) — lets the display refresh from its own memory instead of continuously redrawing.

Helpful tips

• Light graphical session


  If you are using a graphical environment, chances are that you do not need a full blown desktop environment to manage the position of your windows. The lighter your window manager, the better. My argument is that all you need is a program that can create windows and move them; such program should be simple and small, understandable and hackable. Everything else is bloated software, I would suggest something like dwm or ctwm.

  I did not compare Wayland-based window managers against X11, I found some benchmarks online and they are similar in power consumption but the benchmarks were made with Gnome. Unless you find a really minimal window manager using wayland, the good old simple X11 window managers are the best.

• Have less background processes running


  If you are using a linux distribution instead of compiling your system on your own, chances are that the maintainers of said distribution have enabled a bunch of stuff you don't really need. This goes from kernel modules for various hardware, which you do not need, to background daemons to do things like reporting crashes.

  If your system uses systemd, you can check active services using the systemctl status command. Even though many of them may be idle and may not contribute much to the overall power consumption, they still consume resources so It is helpful to have less things running in your system.

  Disable things like Bluetooth if you don't need it, crash reporting daemons, etc…

• Lower the backlight


  Lower the backlight of your laptop as much as you are comfortable with.
